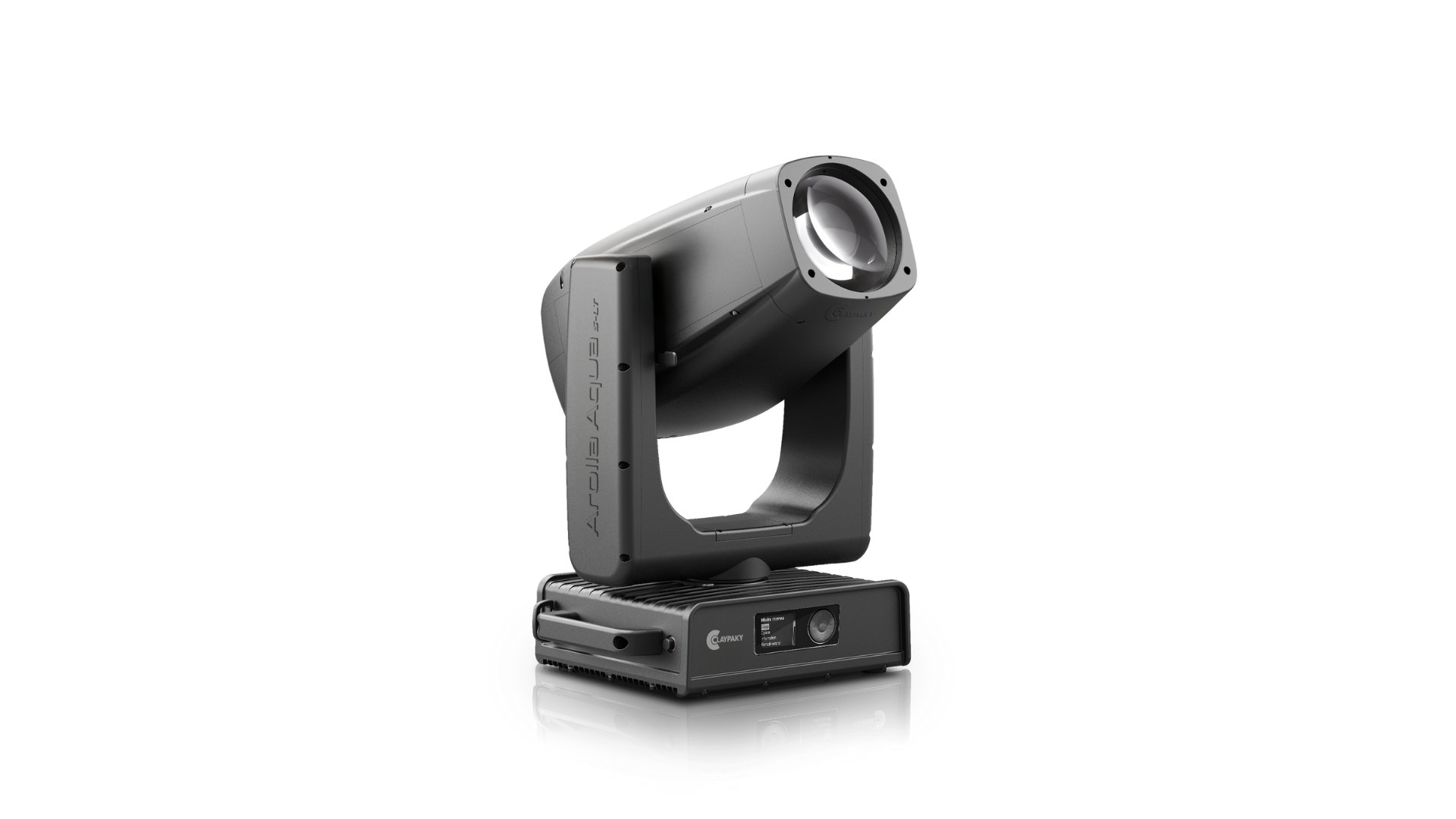

Arolla Aqua S-LT

Shield Family (IP66)

Part number

CL3029

Datasheet

Arolla Aqua S-LT

Shield Family (IP66)

Part number

CL3029

Availability

QTY

Datasheet

View wishlist

Do you need a profile that blends seamlessly behind the scenes, performs flawlessly in tight setups, and keeps full creative control at your fingertips? Arolla Aqua S-LT is your answer. This ultra-compact, weatherproof fixture is engineered for lighting designers who demand both power and precision, without the bulk. It packs full power, infinite motion, high-end optics, and a complete set of effects, shrinking its footprint to 25.9 kg (57 lbs). Engineered for both indoor and outdoor use, it’s built to perform without compromise.

At its heart is a custom 350W white-LED engine (6500K) that pumps out an impressive 21,000 lumens. Whether you’re working indoors or facing the elements outside, the Arolla Aqua S-LT delivers the full creative expression you need, exactly when you need it: just reliable performance in a smarter, lighter package that adapts to your vision.

Why you’ll love Arolla Aqua S-LT:

Maximum Power, Compact Form: 25.9 kg (57 lbs) and 637 mm (25.07 in) high, setting a new benchmark for long-throw IP66 profiles. Arolla Aqua S-LT fits anywhere.
Impact at Every Distance: Arolla Aqua S-LT features a 140 mm (5.5 in) front lens and 3.8°–47.2° linear zoom, engineered with a refined hotspot for high-impact aerials and crisp projections over distance.
IP66-Rated: Designed for all-weather use, featuring SunSafe auto-head protection to guard lenses in direct sunlight.
Full Creative Suite: Includes dual gobo wheels, animation disc, 4-blade framing system, 4-facet prisms, 16-blade iris, and 5° and 1° frosts for rich creative flexibility. Plus, GoBright beam optimization preserves output and color integrity, even with gobos inserted.
Accurate Color Performance: Fast CMY + linear CTO mixing, along with a 6-slot color wheel, deliver flawless gradients and vivid tones for broadcast or live events.
Smart Positioning and Recovery: Arolla Aqua S-LT offers Absolute Position tracking and an Electronic Brake to maintain head position, even after power loss, ensuring seamless recovery in critical show environments.
Next-Gen Control and Connectivity: Built-in Wireless DMX, web interface, and CloudIO compatibility for streamlined remote configuration, diagnostics, monitoring, and firmware updates.
Infinite Motion, Dynamic Look: Continuous pan & tilt rotation enables fluid, uninterrupted motion effects, saving programming time with no need to “re-center” and increasing the creative possibilities for slow rotation, fast spins, or continuous sweeping effects.
Versatile Yet Robust: The ideal hybrid fixture for small to medium festivals, broadcast & TV studios, permanent installations, corporate events, and high-trim outdoor venues.
Arolla Aqua S-LT is the most compact member of the Arolla Aqua family, bringing the same cutting-edge design and powerful performance into a smaller, more agile form. It completes the Arolla Aqua ecosystem with seamless consistency in style, technology, and creative versatility.

If your design demands full creative control and your rig demands compactness and reliability, Arolla Aqua S-LT delivers both. Infinite motion, sharp framing, rich effects, all in a footprint that works harder for you.

Light Source

custom 350W cold white LED engine (6500 K)

Light Output

+21,000 lm (in integrating sphere)

Zoom range

3.8°-52° (13:1) zoom

Effects

Super-fast 16-bit CMY color mixing (wheels); Linear CTO 3000K-6500K; CRI 70+ with selectable filter for CRI 88+; 6-color wheel (including high CRI filter); 7 HD interchangeable rotating gobos; 9 HD interchangeable fixed gobos; Go Bright Technology, no light loss or color shift when gobos are inserted; Animation wheel; 4 facet radial and 4 facet linear prisms; 15-blades motorized iris; Framing system: 4 focal planes blades, +/- 60° rotation and macro channel control; “Total Curtain” effect allowing the full blackout with each single blade; 1° and 5° frosts; 24-bit digital dimmer with 4 user-selectable dimming curves; Digital stop-strobe effect

Specifications

Light Source Type

Power

350W

CRI

Up to 70 with selectable filter for CRI up to 88

Color temperature

6500K ± 300K

Lamp life expectancy

40.000 hrs L70*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range

3.8° to 47.2°

Lumen output

21.000 Lumen Output (Integrating Sphere)

Front lens diameter

140mm

Optical system

High efficiency

Noise Level

Silent mode

36.5 dB

Auto mode

39.8 dB

Theatre mode

36.3 dB

Constant mode

42.4 dB

Control and Connections

Personalities

2 modes:

Basic: 44 control channels
Standard: 54 control channels

Protocols

DMX, Art-Net, RDM, sACN
CRMX (TiMo FX) (Lumen Radio)

Connectors

Locking 5 pin XLR IN/OUT
RJ45 IN/OUT

Power connector

PowerCon True1 IN/OUT

Web Server

Built In

CloudIO

Fully compatible

Dynamic Effects

Colors

Linear CMY/CTO color mixing
Linear CTO filter 3000K – 6500K
1 color wheel with 6 dichroic colors, tint channel

Gobos

1 static gobo wheel with 9 fixed interchangeable gobos
1 rotating gobo wheel with 7 interchangeable glass gobos

Framing System

4 blades (± 35° inclination) with ± 60° rotation of the full system
“Total Curtain” effect allowing the full blackout with each single blade
Built-in macros

Frost

2 frost filters: 1 heavy and one soft

Rotating Effects

1 four-facet conical prism with rotation in both directions at variable speed
1 four-facet linear prism with rotation in both directions at variable speed
1 aluminium animation disc with continuous rotation in both directions at variable speed movement

Iris

3% – 100% linear adjustment
Motorized with variable pulse and random effects

Movement

Tilt: endless
Pan: endless
Absolute position
Automatic repositioning
Tilt brake
Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

Motorized Zoom and Focus

Dimmer/Shutter

High resolution dimmer – 24 bit, 5 curves
Shutter and Strobe effect

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

Housing

Magnesium and steel structure with plastic components
Two side handles for transportation
IP66 protection rate

Working Position

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max Power consumption

Max 600W (5,5A) @ 100V – 600W (2,4A) @ 240V

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Saftey Specs

Minimum distance of illuminated objects

3.5 meters (8’ 2”)

Minimum distance from flammable materials

0.2 meters (8”)

Battery fuse

T6.3A 250V

Main fuse

10A 250V

Thermally protected power supply (overheating and cooling failure)

Forced ventilation with axial fans

Compliance [Expected]

CE Marking (in conformity to the following)

2014/53/EU – Radio Equipment Directive (RED)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

UKCA conforms to UK regulations

S.I. 2017 N.1206
S.I. 2012 N.3032
S.I. 2021 N.745

cETLus LISTED

UL 1573:2003
CSA C22.2 N.166:2015

Packaging

Carton box + Polystyrene

Carton box + Foam shell

Flight case + Foam shell

Weight - Size

Weight

25.9 Kg (57.1 lbs)

Base dim.s

299 x 256 mm 11.77 x 10.8 In

Height with vert. head (h)

642 mm 25.27 In

Dist. b/t 2 fixt

750 mm 29.52 In

Max size

386 x 362 mm 15.19 x 14.25 In

Accessories

Omega bracket

2×183102/805 (Included)

ETL Power

CAB02B/802 (Included)*

* Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)

Flight case

CF1055 (Optional)

Flight case + foam shell (2 pos.)

CF1055F (F.C. adaptor: 466100/001) (Optional

Safety Chain

105041/001 (Optional)

Clamp

C21070 (Optional)
