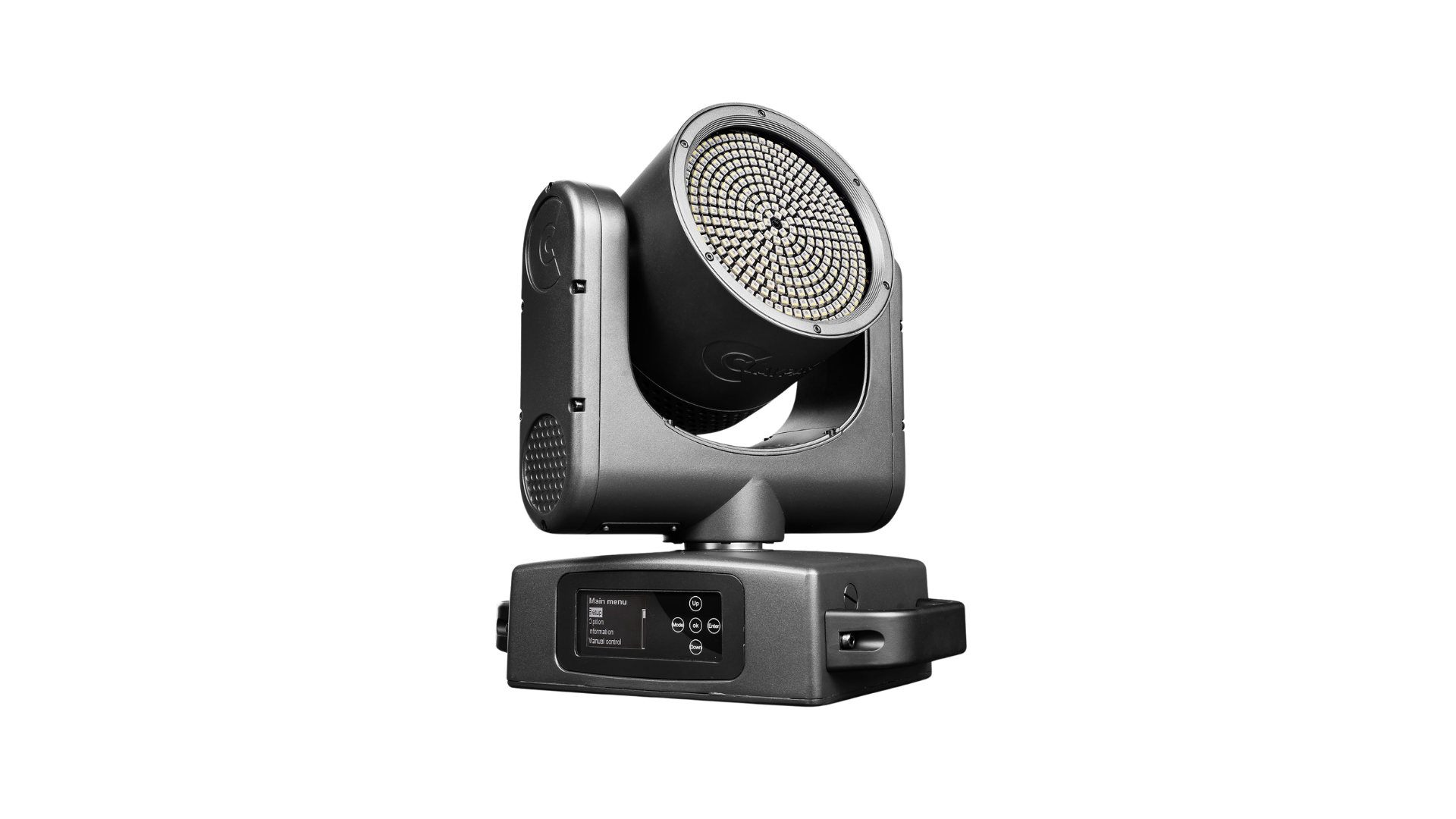

Step into the future with Mini-B Sparky Aqua—a true game-changer in the world of compact, lightweight mini moving-heads! This IP66-rated fixture is causing a stir, and for good reason: prepare to be hypnotized by the powerful strobe effects of Mini-B Sparky Aqua!

Let’s dive into the details:

Robust Design, Powerful Performance: Mini-B Sparky Aqua doesn’t play games when it comes to durability and brightness. Its high-output RGBW SMD LEDs, arranged in 10 individually controllable concentric circles, create intense colors that spread evenly across a wide 120° floodlight. Whether indoors or outdoors, this tiny fixture delivers awesome visual effects, from kaleidoscopic displays to strong strobe effects.

Swift Moves, Precise Beams: Thanks to lightning-fast pan and tilt movements, Mini-B Sparky Aqua hits its mark every time. Perfect for live performances, events, and dynamic light shows, it’s like having a nimble dancer on stage. From gentle fades to dramatic sweeps, it’s got the moves.

Sleek Design, Seamless Integration: Mini-B Sparky Aqua’s compact profile fits anywhere—trusses, overhead rigs, or discreet spots. Modern design meets top-tier performance.

Creativity Released: Our Advanced Layer Management system lets you merge effects effortlessly. Background color, built-in macros, and external video content—mesmerizing possibilities at your fingertips.

Rock the Stage, Illuminate the backdrops: Mini-B Sparky Aqua can deliver vibrant lighting effects that leave audiences spellbound.

Whether you’re planning a large-scale event, a theatrical production, or a themed installation, this fixture promises to deliver unparalleled performance and reliability. Get ready to be hypnotized!

Light Source

330 x 1W RGBW SMD LEDs arranged into 10 concentric circles

Light Output

up to 14,000 lm

Zoom range

120° beam aperture

Effects

Pixel mapping; 16-bit electronic dimmer; Electronic strobe @ 30 f/sec

Specifications

Light Source Type

Source type

LED RGBW (330 pcs x 1W)

LED life expectancy

50000 hrs L70*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Aperture

120°

Lumen Output

14000 Lm (integrating sphere)

Front Lens

Ø 188 mm

Optical system

High efficiency

Noise Level

Fixed presets

Auto: 51,2 dB
Silent: 41 dB
Theatre: 49,1 dB
Constant: 51.2 dB

Control and Connections

Personalities

Main engine: 5 modes with 14 / 18 / 28 / 36 / 30 control channels
Pixels engine : 2 modes with 30 / 40 control channels

Protocol

DMX, Art-Net, RDM, sACN, webserver

Connectors

Locking 5 pin XLR IN/OUT
RJ45 IN/OUT

Power connector

PowerCon True1 IN/OUT

Web Server

Built In

CloudIO

Fully compatible

Dynamic Effects

Colors

RGBW color mixing – 16 bit
Linear CTO 2700K to 8000K
Advanced layers management (color, internal shape, pixel mapping)
individual control of 10 LEDs areas (ring);
Pre-programmed shape selection of static and dynamic patterns

Movement

Tilt: 220° (16 bit)
Pan: 540° (16 bit)

Strobe

Electronic strobe from 1 to 25 f/sec

Dimmer/Shutter

High speed electronic dimmer – 16 Bit, 5 curves
High speed electronic shutter and strobe

Hardware and Software

Long life self charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

Housing

Magnesium housing
Two side handles for transportation
IP66 protection rate
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max Power consumption

340W

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

90°C (194°F)

Total heat dissipation

1161 BTU/hr ±10% / 1224 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

0.2 m (8’’)

Minimum distance from flammable materials

0.2 meters (8”)

Protections

Thermally protected power supply (overheating and cooling failure)
Forced ventilation with fans and heatsink
Fuse T10 – 250V + battery use T10A 250V

Compliance

CE Marking (in conformity to the following)

2014/ 35 EU Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU Electromagnetic compatibility of equipment (EMC)
2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC EcoDesign requirements for Energy related Products (ErP)

UKCA conforms to UK regulations

S.I. 2016 N. 1101
S.I. 2016 N. 1091
S.I. 2021 N. 745

cMETus LISTED

UL 1573: 2003
CSA C22.2 N. 166: 2015

Packaging

Carton box + Polystyrene

Carton box + Foam shell

Flight case + Foam shell (6 positions)

Weight - Size

Weight

12,194 Kg (26,88 lbs)

Base dimensions

332 x 200 mm (13.07 x 7,87 In)

With vertical head (h)

373 mm (14,68 In)
420 mm (16.53 In) with top hat

Distance between two fixtures

400 mm

Accessories

Omega clamps

1 x 433060-801 (Included)

Top-hat

CA3066000102 (Included)

ETL Power

CAB02B-802 (Included)*

* Cord 1.5 m (bare end with IP65 PowerConTrue1 connector)

Flight case (6 positions)

CF1036F (Optional)

Foam shell

F21339-001 (Optional)

Safety Chain

105015-802 (Optional)

Clamp

C21070 (Optional)

PowerCon True1 connector

CON00O ( Optional)
