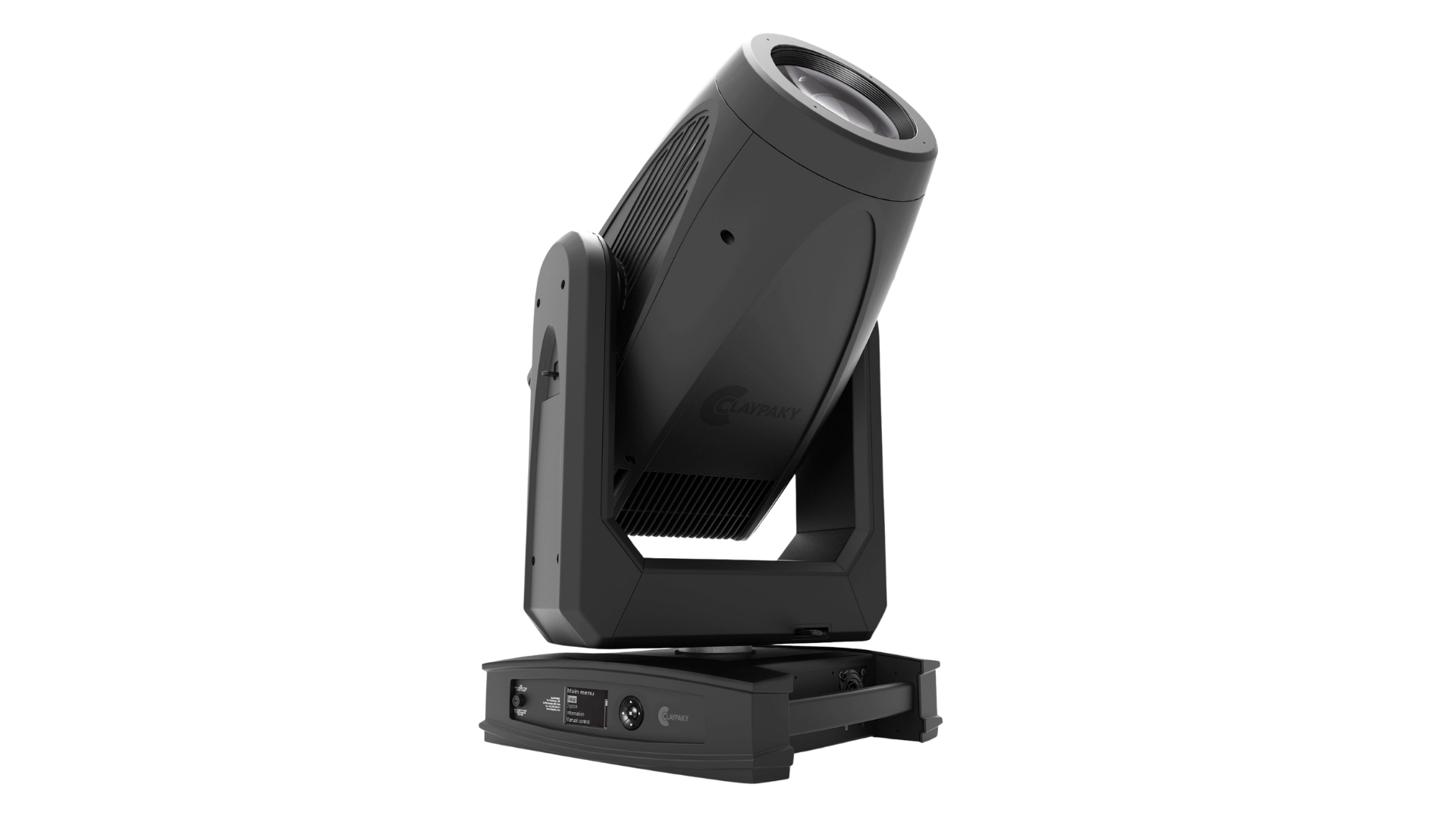

Rhapsodya emerges as a groundbreaking, low-noise multi-spectral RGBAL LED fixture meticulously designed for various applications such as touring, live events, theatre, and TV production, and managed by a specially crafted, internally developed firmware algorithm.
It is an evolution of Sinfonya, particularly regarding the focus on quality of optics and color management, and the whisper-quiet operation even at full output. Rhapsodya has a stunning new product design that is sleek and modern, with a double power output compared to Sinfonya.

Besides the innovative features in common with Sinfonya, such as ACCUFRAMETM, a framing system employing dual focal planes, achieving an astounding 40-fold increase in precision when compared to conventional framing systems and TONEDOWNTM, which ensures whisper-quiet operation at just 27dB, Absolute Position control for advanced PAN & TILT capabilities, and LINEGUARD, a new frost system employing two pairs of blades, Rhapsodya gives a technological boost thanks to the new features: AccuTune a precise control over the multicolor LED engine thanks to a new algorithm for vibrant and rich colors optimized for both stage and TV.

COLORSTRING, is an individual LED control for a high level of graphics and color effects, empowering you to create intricate and dynamic lighting displays.
Furthermore, the fixture boasts a cutting-edge Proprietary Optical System, offering an impressive 6.2° to 63.3° Zoom range.

Rhapsodya is more than just a fixture; it’s your backstage partner, your on-air star, and your roadie’s dream. Explore its exceptional features and witness the future of lighting innovation.

Light Source

1200W RGBAL LED Engine

Light Output

24,000 lm (in integrating sphere)

Zoom range

6.2°- 63.3°

Effects

Digital color filters; Individual Led Stripe Control (ColorString); 2 wheels with 6 HD interchangeable rotating gobos each; Animation wheel with X/Y insertion and rotation; 4-facets prism with rotation in both directions at variable speed; Color wheel expansion (with additional deep red, deep green and deep blue options)

Specifications

Light Source Type

Source type

LED RGBAL

Power

1200W

CRI

Up to 94

Colour Temperature

2500 to 10.000K

Lamp life expectancy

40.000 Hrs*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range

6,2° to 63,3°

Lumen Output

24.000 Lumen Output (Integrating Sphere)

Front Lens

Ø 180mm

Optical system

14 high efficiency lenses

Noise Level

Controlled by

Able to control linearly fans speed

Fixed presets

27dBA/ 30dBA / 35dBA

Fanless mode

with reduced output

Control and Connections

Personalities

Three (3) modes with 63 / 55 / 48 control channels + separate control of the engine string (20 channels)

Control protocol

DMX, Art-Net, RDM, sACN, CRMX lumen Radio (Optional)

Connectors

Locking 5 pin XLR IN/THRU
2 x RJ45 IN/OUT

Power connector

PowerCon True1 IN

Web Server

Built In

CloudIO

Fully compatible
On-field calibration for color consistency

Dynamic Effects

Colours

RGBAL control
Virtual CTO
+/- Green correction
Adjustable CRI
Digital Color Filters

Gobos

2 rotating gobo wheels with 6 HD Indexable and replaceable gobos: Ext diam. 32.8 mm Image diam. 27 mm Thickness 1.1mm

Framing system

4 blades with +/- 60° rotation of the full system, 2 focal planes
“Total Curtain” effect allowing the full blackout with each single blade

Frost

Linear heavy frost 5° for wash effect (Fixed)
Light frost 1° for soft diffusion (interchangeble)

Rotating Effects

1 Aluminum animation wheel with continuous rotation in both direction at variable speed – XY movement
1 Four-Facet prism with rotation in both directions at variable speed

Iris

16 blades motorized with variable pulse and random effects

Movement

Tilt: 270° – 16bit
Pan: 540° – 16bit
Accuracy: Resolution ± 0.12° (± 0° 7′ 12″) Range 0.24° (0° 14′ 24″)
Absolute position
Automatic repositioning
Mechanical Pan/Tilt lock for safe transportation and maintenance
Tilt safety brake system

Beam

Motorized Zoom and Focus
Autofocus

Dimmer/Shutter

High speed electronic shutter and Strobe
High resolution dimmer 24 bit, 3 curves

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

Housing

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-120 / 200-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

MAX power consumption

1600W

Thermal Specification

Max ambient temperature

40°C (104°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

40°C (104°F)

Total heat dissipation

5294 BTU/hr ±10% / 5580 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

2 meters (6’7”)

Minimum distance from flammable materials

0.2 meters (8”)

Bipolar circuit breaker with thermal protected power supply (overheating and cooling failure)

Forced ventilation with axial fans

Compliance

CE Marking (in conformity to the following)

2014/53/EU – Radio Equipment Directive (RED)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

UKCA conforms to UK regulations

S.I. 2017 N.1206
S.I. 2012 N.3032
S.I. 2021 N.745

cETLus LISTED

UL 1573:2003
CSA C22.2 N.166:2015

Packaging

Green/Total carton box

Flight case + Foam shell (1 position)

Weight - Size

Weight

48.1 Kg (106.04 lbs)

Base dimension

452 x 407 mm 17,79 x 16,02 in

Height with vertical head (h)

859 mm 33,82 in

Distance between two fixtures

850mm

Accessories

Omega clamps

2×183102-805 (included)

Flight case 1 position

CF1028 (Optional)

Safety Chain

105041-003 (optional)

Power cord

ETL Power cord Cord 1.5 mt. ( bare end with IP65 PowerConTrue1 connector): CAB0TF-802 (included)

Clamp

C21070 (Optional)
