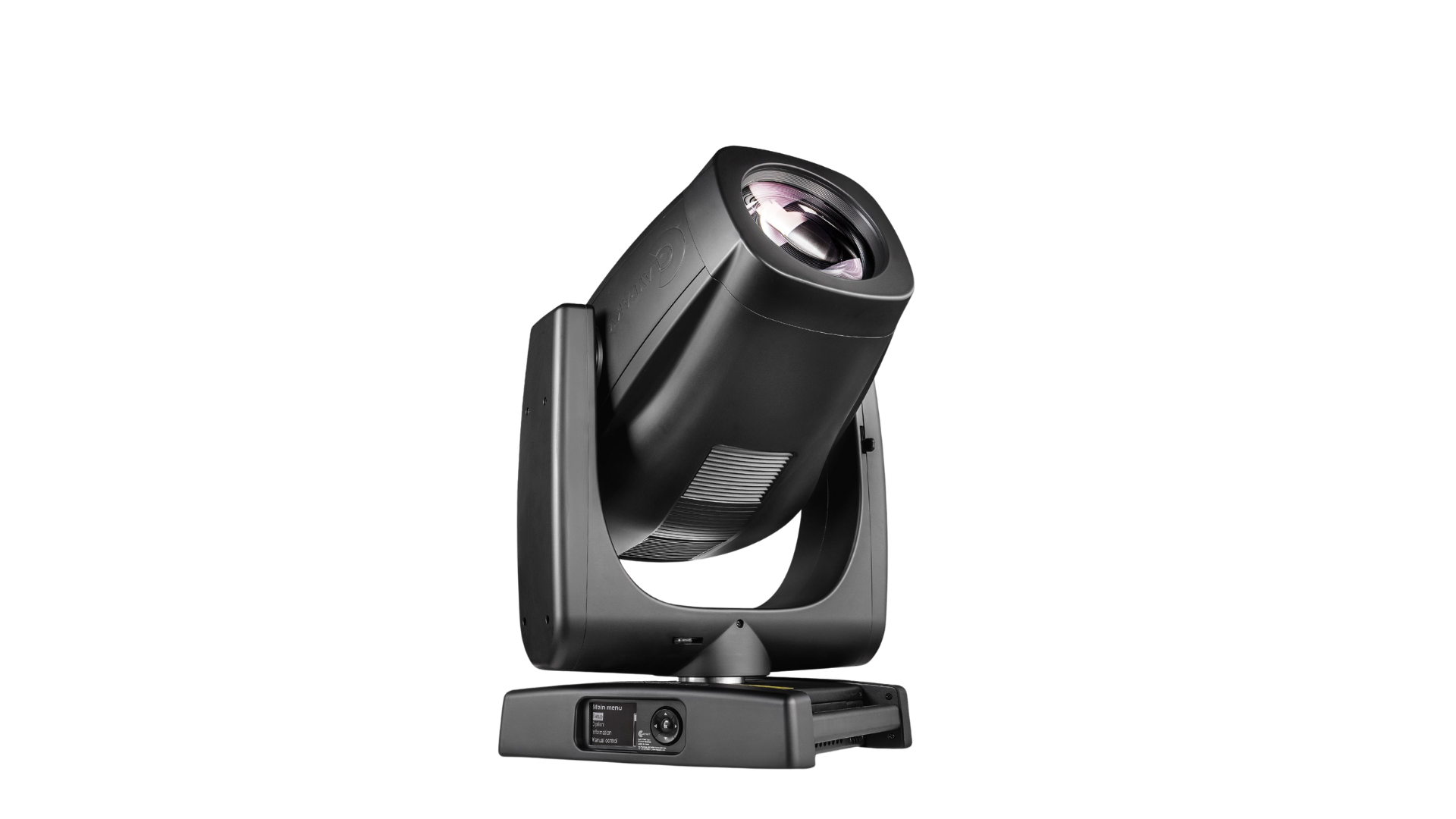

Sharpy X Frame: Changing the Frame of Lighting Design

Sharpy X Frame is a groundbreaking multifunction hybrid luminaire that redefines what’s possible in lighting. It combines cutting-edge technology, including the innovative four-focal plane shutter system, with the best features of the Sharpy line. This powerful fixture is housed in a lightweight, compact design, to meet the evolving needs of modern lighting professionals, delivering exceptional performance in a versatile and portable package, with a big punch.

Step into the world of Sharpy X Frame, where every detail is designed to redefine your experience.
Here’s what sets it apart:

Unmatched Brightness and Color Quality: Sharpy X Frame features a powerful 550-Watt arc lamp for extreme brightness and vivid, uniform colors, including an unmatched deep red.

One Fixture, Endless Possibilities: A truly hybrid, multifunction luminaire – whether designing intricate beam effects, precise spot lighting, or smooth washes, the Sharpy X Frame gives you the flexibility to achieve perfect lighting for any scenario.

Big Impact, Small Package: It combines the power of much larger luminaires in a lightweight, compact design without sacrificing any features. Packed with advanced capabilities like a rotating gobo wheel with eight gobos, a static gobo wheel, four- and eight-facet rotating prisms, linear frost, and an innovative color system with CMY, CTO, and a separate color wheel, it’s designed to maximize your creative options.

Precision Framing at Your Fingertips: The integrated four-focal plane shutter system allows for precise beam shaping and framing, setting new standards for creative control and making it possible to give life to “curtain effects” to introduce a performance, transition between scenes, or create a dynamic visual element during a live show.

Achieve Stunning Visual Effects: Sharpy X Frame features a zoom range from 3° to 52° in spot mode and 2° to 29° in beam mode, delivering stunning effects across all settings. The 160mm front lens and Claypaky’s renowned optics ensure sharp images and perfectly collimated beams every time.

The Sharpy X Frame is the most versatile, compact hybrid fixture available today, ideal for bright spotlighting, dynamic aerial effects, and precise framing—all at an accessible price point. Upgrade your creative lighting toolkit with the Sharpy X Frame, and discover a new level of creativity and efficiency.

Light Source

550W arc lamp

Light Output

18,800 lm

Zoom range

3°-52° (spot mode) and 2°-29° (beam mode)

Effects

Linear CMY color mixing; Linear CTO; Fixed color wheel with 14 dichroic colors; 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos; 1 Static Gobo Wheel with 18 gobos; 4-blade Framing system; Linear heavy frost for wash effect; Animation wheel; 2 rotating prisms (4 and 8 facet); Motorized iris; Motorized Zoom and Focus; High resolution dimmer 16 bit; Shutter and Strobe effect

Specifications

Light Source

Source type

Philips 25R 550W lamp

Colour Temperature

8000K

CRI

80+

Lamp life expectancy

1500 hrs*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range

3° to 52° (Spot mode) – 2° to 29° (Beam mode)

Lumen output

18800 (Integrating Sphere)

Front lens diameter

160mm

Optical system

High efficiency

Noise Level

Auto fan mode

49.3 dBA

Control and Connections

Personalities

Single mode with 43 control channels

Control Protocol

DMX, Art-Net, RDM, sACN

DMX and RDM connectors

Locking 5 pin XLR IN/THRU

Ethernet port

RJ45 IN

Power connector

PowerCon True1

Web Server

Built In

Dynamic Effects

Colors

Linear CMY colour mixing (brilliant and lighter Magenta in the Sharpy X Frame FD model)
Linear CTO
Fixed color wheel with 14 dichroic colorss

Gobos

1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
Rotating gobo dimensions:
Ext diam. 19 mm
Image diam. 13.5 mm
Thickness 1.1mm
1 Static Gobo Wheel with 18 gobos

Framing system

4 blades with +/- 60° rotation of the full system
“Total Curtain” effect allowing the full blackout with each single blade
Built In macros

Frost

Linear heavy frost 5° for wash effect Sharpy X Frame
Linear light frost 2° for wash effect Sharpy X Frame FD

Rotating Effects

Aluminum animation wheel with continuous rotation in both direction at variable speed
2 prisms (4 and 8 facet) with rotation in both direction at variable speed

Iris

Motorized with variable pulse and random effects

Movement

Tilt: 270° – 16bit
Pan: 540° – 16bit
Accuracy: Resolution ± 0.27° (Range 0.54°)
Automatic repositioning
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

Motorized Zoom and Focus

Dimmer/Shutter

High resolution dimmer 16 bit
Shutter and Strobe effect

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access throug

Housing

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate

Working Position

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max Power consumption

750VA

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

90°C (194°F)

Total heat dissipation

2562 BTU/hr ±10% / 2700 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

8 meters (26’ 3”)

Minimum distance from flammable materials

0.2 meters (8”)

Fuse

T10A – 250V

Thermally protected power supply (overheating and cooling failure)

Forced ventilation with axial fans

Compliance

CE: conforms to the European Directives
UKCA: conforms to UK Regulations
EAC: conforms to EurAseC Regulations
cMETus Listed

Packaging

Carton box + Polystyrene

Carton box + Foam shell

Flight case + Foam shell (2 positions)

Weight - Size

Weight

28 Kg (61.7 lbs)

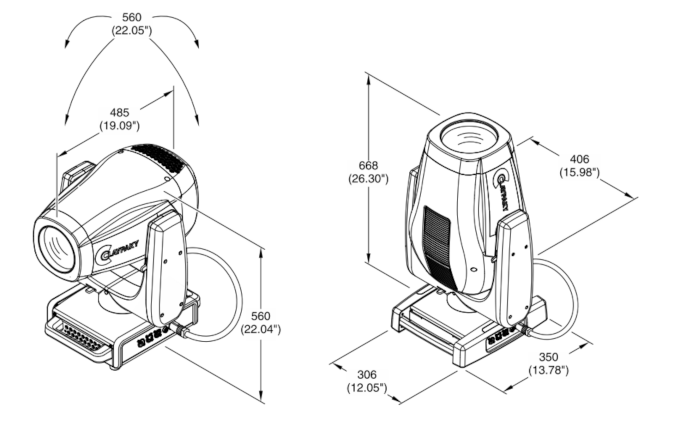

Base dimensions

306x350mm

Height with vertical head (h)

668 mm with vertical head (h)

Distance between two fixtures

505mm

Accessories

Omega clamps

2×183102/805 (included)

Power cord

CAB02B/802 (included)

Foam shell

F21326/001 (optional)

Flight case (2 positions)

CF1006 (optional)

Safety Chain

105041/003 (optional)

Sharpy X Frame to Sharpy X Frame FD conversion kit

CA3005000102 (optional)

Sharpy X Frame FD to Sharpy X Frame conversion kit

CA3006000102 (optional)
