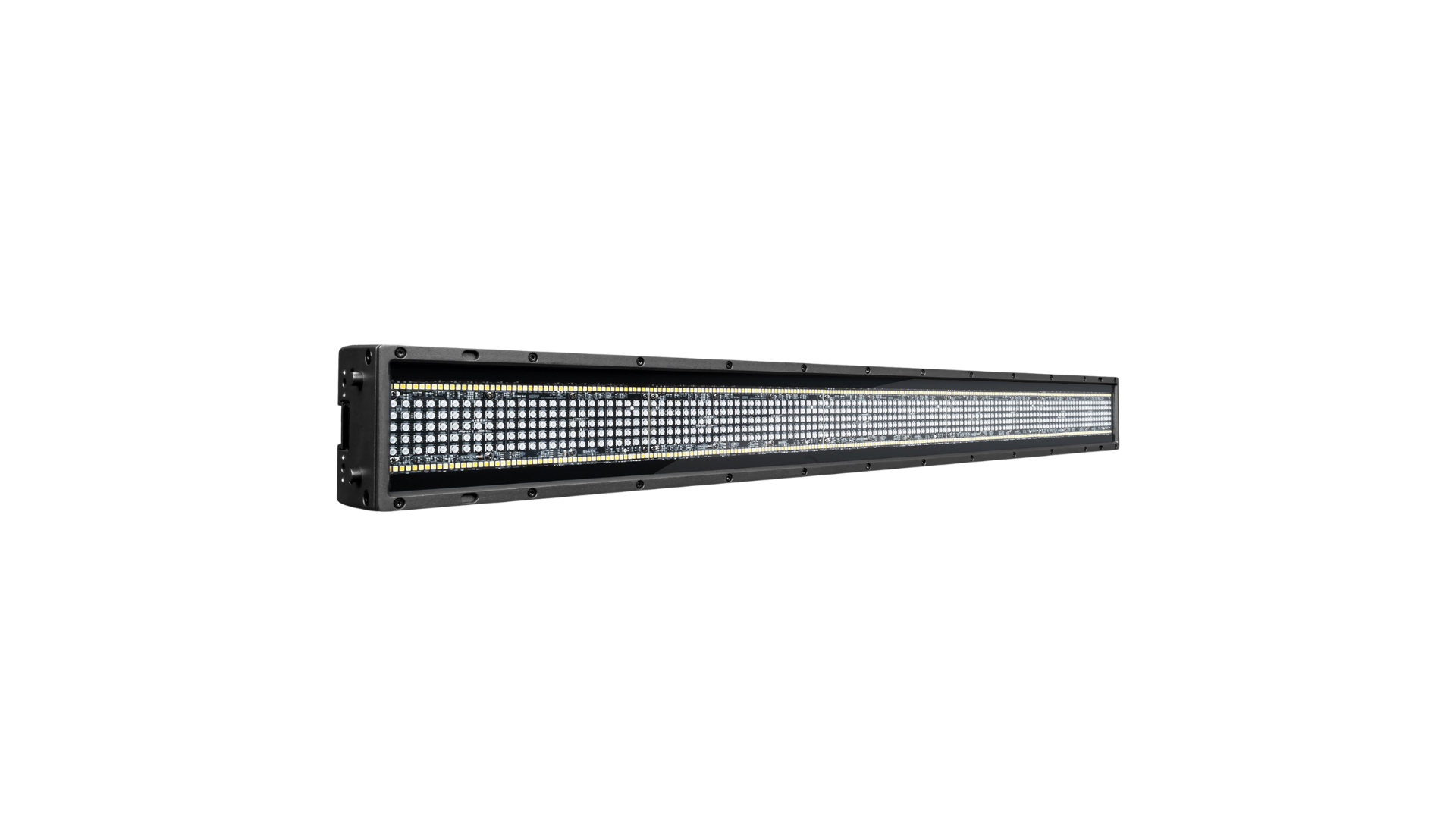

The hybrid bar that takes graphical strobe to new heights.

Tambora Stormy Linear redefines professional strobe lighting with extreme brightness, pixel-perfect control, and seamless modularity. This innovative hybrid bar delivers stunning graphical strobes that transform any production into an immersive visual experience.

Tambora Stormy’s main features at a glance:

Dual-Engine Hybrid Performance: Unlock versatility with 25 central RGBW LEDs for vibrant color and two ultra-powerful strobe lines with 125 WW/CW LEDs, each divided into 25 controllable segments. Create simultaneous color effects and strobe sequences effortlessly.

Precision Pixel Control: Gain full control over each of the 25 segments, adjusting color, intensity, and timing for motion graphics and dynamic effects.

Advanced Layer Management System: Blend three effect layers in one fixture—background color, built-in macros, and custom video content. Achieve professional looks with ease and make live adjustments during performances.

Modularity Anywhere, Anytime: Tambora Stormy Linear shares accessories and design elements with Tambora Glare, offering seamless integration in both horizontal and vertical setups. Build cohesive lighting arrays or distribute fixtures across venues.

All-Weather, IP66 Rated: Perfect for outdoor events, this fixture withstands challenging weather conditions. Its compact design (less than 14kg) simplifies transport, while magnetic filters allow quick adjustments for frost or enhanced pixel definition.

Broadcast-Ready: With neutral density filters optimized for broadcast, Tambora Stormy Linear ensures crisp, high-visibility lighting that excels both live and on screen. Its 120° aperture provides generous coverage without sacrificing intensity.

Ready to revolutionize your lighting design? Contact us today for more info about Tambora Stormy Linear. Don’t miss this game-changer!

Light Source

Main Engine: 5x5 SMD RGB LEDs x25 Strobe Engine: 2 (lines) x 125CW+125WW x1W LEDs, for each line

Zoom range

120° beam (RGB LEDs) 120° beam (WW/CW LEDs)

Effects

Advanced Layer Management System; Pixel Mapping

Specifications

Light Source Type

Source type

5×5 SMD RGB LEDs x25 (Main Engine)
2 (Lines) x 125CW+125WW x1W LEDs, for each line (Strobe engine)

Color Temperature

2500K – 8000K

LED life expectancy

50.000 Hrs L70*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Aperture

RGB LEDs: 120°
CW and WW LED strobe: 120°

Lumen output

26.776 Lm (integrating sphere)

Optical system

High efficiency

Noise Level

Fixed presets

Silent mode: 31.4 dB
Theatre mode: 31.2 dB
Constant mode: 44.2 dB
Auto mode: 44.2 dB

Control and Connections

Personalities

Main engine: 16 / 36 / 48 control channels
Pixel engine: 75 channels
Strobe engine: 50 / 50 / 50 / 100 control channels

Protocols

DMX, Art-Net, RDM, sACN

Connectors

Locking 5 pin XLR IN/THRU
RJ45 IN /OUT

Power connector

PowerCon True1 IN/OUT

Web Server

Built In

CloudIO

Fully compatible

Dynamic Effects

Colors

625 pcs 3-in-1 RGB LEDs
500 pcs Cold+Warm white LEDs split into 50 areas
Advanced layers management (color, internal shape, pixel mapping + strobe)
White CT emulation 2500 – 8000 K
RGB and strobe shape effect

Frost

Neutral Density filter (Optional)
White filter 60° (Optional)

Dimmer/Shutter

High resolution electronic dimmer, 24 bit, 5 curves
Electronic strobe 0,3 to 25 f/sec
High speed electronic shutter and strobe

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

Housing

Magnesium housing
Two side handles for transportation
IP66 protection rate
Built-in mechanical horizontal alignment system
Working in any position
Accessories for vertical alignment (optional)
Optional safety chain (optional)

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max power consumption

Max 480W @100V 4,8A

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

90°C (194°F)

Saftey Specs

Minimum distance of illuminated objects

0.2 m (8’’)

Minimum distance from flammable materials

0.2 meters (8”)

Protections

Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans
T10A 250V 5x20mm – External mains fuse
T6.3A 250V 5x20mm – External fuse

Compliance

CE Marking (in conformity to the following)

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

UKCA conforms to UK regulations

S.I. 2016 N. 1101
S.I. 2016 N. 1091
S.I. 2012 N. 3032
S.I. 2021 N. 745

cMETus Listed

UL 1573:2003
CSA C22.2 N.166: 2015

Packaging

Carton box + polystyrene

Carton box + Foam shell

Flight case + Foam shell

Weight - Size

Weight

13.6 Kg (30 lbs)

Base dimensions

1000 x 198 x 106 mm
39.4 x 7,8 x 4.2 in

Accessories

Omega bracket A

445006/801 (Included)

Adjust. Bracket

445005/801 (Included)

Handle bracket

VOL011/001 (Included) x2

ETL Power

CAB02B/802 (Included)*

* Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)

Flight case (4 pos.)

CF1037F (Optional)

Clear side for strobe frost filters (Optional)

Transparent 10°: CA2001000102
Transparent 20°: CA2002000102
Transparent 30°: CA2003000102
Middle black: CA2004000102

Interchangable with T. Glare frost filters (Optional)

10°: CA2009000102
20°: CA2010000102
30°: CA2011000102
Black: CA2012000102

Base plate + hang adapter

CA2013000102 (Optional)

Base plate

CA2014000102 (Optional)

Hang adapter

CA2015000102 (Optional)

Square base plate + hang adapter

CA2016000102 (Optional)

Square base plate

CA2017000102 (Optional)

Floor stander assembly

CA3078000102 (Optional)

Reinforced assembly

CA3079000102 (Optional)

Parallel con. bracket ass.

CA3079000102 (Optional)

Vertical bracket assembly

CA3081000102 (Optional)

Safety chain

105041/003 (Optional)

Clamp

C21070 (Optional)

Omega bracket

183102/805 (Optional)
