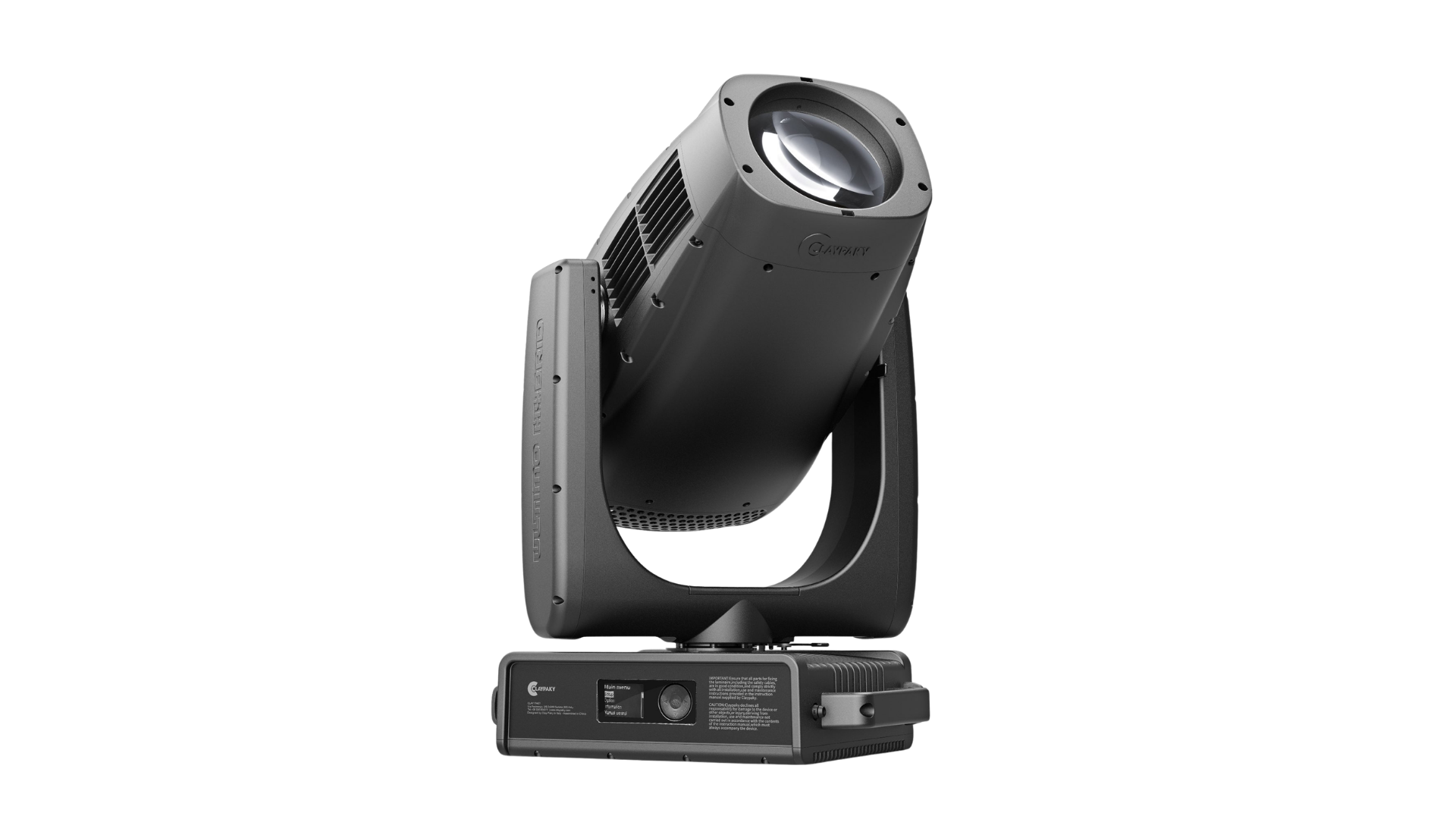

Imagine a hybrid fixture that is powerful, versatile, and compact. Ultimo Hybrid brings your vision to life, indoors or out, with its IP66 water and dust resistance. Effortlessly shift between beam, spot, wash, and profile modes, reducing the need for extra fixtures. With intense brightness, a long-lasting short-arc lamp, and an advanced effects engine, every designer needs this all-in-one tool. Ultimo Hybrid: the ultimate evolution of what’s possible.

Discover the amazing features that make Ultimo Hybrid the perfect choice for your lighting designs.
Here’s why Ultimo Hybrid is a game-changer:

Impressive Output and Longevity: Ultimo Hybrid, powered by a 550W short-arc lamp, delivers an impressive 19,000-lumen output and lasts up to 4,000 hours. This ensures reliable, energy-efficient performance across numerous shows, making it a perfect choice for low-maintenance applications.

Smooth, Versatile Zoom: Its motorized linear zoom ranges from evenly collimated spots (2° to 29° in Beam mode) to tightly focused beams (3° to 52° in Spot mode) enabling designers to craft dynamic scenes that set Ultimo Hybrid apart as the ultimate all-in-one solution.

Precision Control for Creative Freedom: The Advanced Four-Focal Plane Shutter System offers designers exceptional control over each blade. It grants custom effects like a “Total Curtain” with razor-sharp edge definition, unlocking new levels of creativity.

Absolute Position Innovation: This special system remembers the fixture’s position in real-time, even after power interruptions, ensuring precise repositioning and reducing setup time.

Unmatched Versatility in a Compact Design: Ultimo Hybrid packs the power of larger fixtures into a compact design, featuring an eight-gobo rotating wheel, a static gobo wheel, four- and eight-facet prisms, and linear frost for smooth washes. Its broad color spectrum, high CRI, CMY mixing system, and 14 dichroic chips—including a striking deep red—produce professional-grade hues that tell stories without words.

Rock-Solid Tilt Stability with Electronic Brake: Say goodbye to unwanted tilts! Claypaky’s advanced electronic brake system securely locks the head in place, guaranteeing smooth and precise positioning even in the most demanding environments.

The Evolution of Hybrid Lighting!
Ultimo Hybrid redefines hybrid lighting with its compact, feature-rich design and powerful output. Perfect for touring, live events, and permanent installations, this fixture brings versatility and brilliance to lighting designers everywhere. In a world where every beam tells a story, Ultimo Hybrid is here to help create yours.

Light Source

550W arc lamp (4000hrs life span)

Light Output

19,000 lm (integrating sphere)

Zoom range

3°-52° (spot mode) and 2°-29° (beam mode)

Effects

Linear CMY color mixing (Deep Red); Linear CTO; 14-color wheel on separate channel; Rotating gobo wheel with 8 interchangeable HD gobos; Static gobo wheel with 18 static gobos; Six beam reducers (down to 0.5°); Framing system: 4 focal planes, +/-60° rotation and macro channel control; Linear heavy frost 5°; Animation wheel; 2 bi-directional rotating prisms (4 and 8 facet); Motorized iris

Specifications

Light Source Type

Source type

Short-arc High Intensity Discharge (HID) lamp

Power

548W

Color temperature

6000 K

CRI

80+

Lamp life expectancy

4000 hrs L70*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range

3° to 52° (Spot mode) – 2° to 29° (Beam mode)

Lumen output

19000 (Integrating Sphere)

Front lens diameter

Ø 160mm

Optical system

High efficiency

Noise Level

Fixed preset

51.3 dBA

Control and Connections

Personalities

Single mode with 43 control channels

Protocols

DMX, Art-Net, RDM, sACN, CRMX TiMo FX RDM

Connectors

Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN/OUT

Power connector

PowerCon True1 IN/OUT

Web Server

Built In

Dynamic Effects

ColouLong life self-charging battery Display Graphic LCD backlit b/w Display Firmware upload from another fixture Firmware Upgrade via Web Server Diagnostic DMX monitoring Remote access through RDMrs

Linear CMY colour mixing
Linear CTO
Fixed color wheel with 14 dichroic colors

Gobos

1 rotating gobo wheel with 8 interchangeable glass gobos
1 static gobo wheel with 18 gobos (6 beam reducers up to 0.5°)

Framing system

4 blades with ±60° rotation of the full system on 4 focal planes
“Total Curtain” effect allowing the full blackout with each single blade

Frost

Linear heavy frost 5°

Rotating Effects

1 aluminium animation wheel with continuous rotation in both directions at variable speed
1 four-facet + 1 eight-facet prisms with rotation in both directions at variable speeds

Iris

Motorized with variable pulse and random effects

Movement

Tilt: 270° (16 bit) – 1.9 sec MAX speed
Pan: 540° (16 bit) – 3.2 sec MAX speed
Accuracy: Resolution Range
Absolute positioning – Special feature
Fast/Standard speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenance

Beam

Motorized Zoom and Focus

Dimmer/Shutter

High resolution dimmer 16 bit 5 curves
Shutter and Strobe effect

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM

Housing

Aluminium and steel structure with plastic covers
Two side handles for transportation
IP66 protection rate
Working in any position
Hanging system: with fast-lock Omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-240V, 50/60 Hz

In/Out MAX

Max 2.6A at 100V, Max 8.0A at 240V

Power Supply

Electronic auto range with active PFC

Max Power consumption

Max 940W @100V – Max 850W @ 240V

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

90°C (194°F)

Total heat dissipation

1872 BTU/hr ±10% / 1972 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

8 meters (26’ 2”)

Minimum distance from flammable materials

0.2 meters (8”)

External main fuse

T10A 250V – 5x20mm

External fuse

T6.3A 250V – 5x20mm

Thermally protected power supply (overheating and cooling failure)

Forced ventilation with axial fans

Compliance

CE Marking (in conformity to the following)

2014/53/EU – Radio Equipment Directive (RED)
2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC EcoDesign requirements for Energy related Products (ErP)

UKCA conforms to UK regulations

S.I. 2017 N.1206
S.I. 2012 N.3032
S.I. 2021 N.745

cMETus Listed

UL 1573:2003
CSA C22.2 N. 166: 2015

Packaging

Carton box + polystyrene

Carton box + Foam shell

Flight case + Foam shell (2 positions)

Weight - Size

Weight

41.9 Kg (92.4 lbs)

Base dimension

325 x 450 mm– 12.79 x 17.7 In

Height with vertical head (h)

780 mm – 30.7 In

Distance between two fixtures

650mm

Accessories

Omega clamps

2×183102/805 (included)

ETL Power

CAB02B/802 (included)

* Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)

Flight case

CF1041F (optional)

Foam shell

F21326/001 (optional)

Safety Chain

105041/003 (optional)

Clamp

C21070 (Optional)
