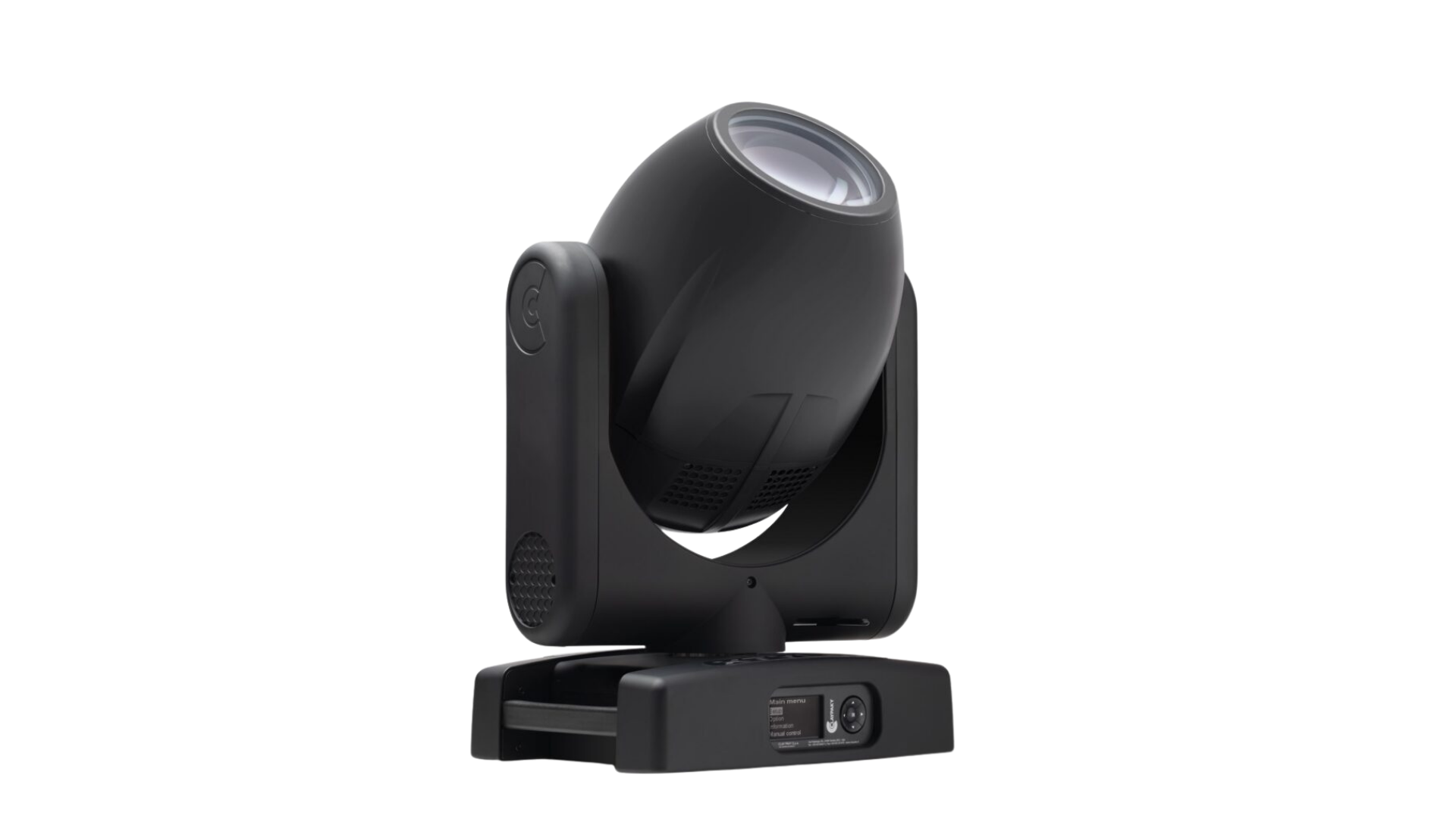

Building on the global success of the original Xtylos, Claypaky introduces Xtylos Aqua, the next evolution in laser-based moving heads. Designed from the ground up to endure the harshest conditions, Xtylos Aqua is IP66-rated and offers the same extraordinary features and performance as its predecessor, now built for the most demanding environments.

Claypaky’s Laser Variance Program, a dedicated online tool, enables effortless navigation through the entire variance acquisition process, guiding every step of the way and supporting in passing quick online tests after a short online training. On top of that, Claypaky supports filling out the FDA form and submitting it to the FDA office. Obtaining global compliance has never been more straightforward
(laservariance.com).

As the first and only IP66-rated laser moving head on the market, Xtylos Aqua combines extraordinary color dynamics and laser precision with comprehensive weather protection. Its integrated fan eliminates condensation from the front lens, ensuring consistent output and beam performance in any condition. The wireless DMX system, integrated as standard, adds further flexibility for complex installations.

Xtylos Aqua is available with Marine Shield, Claypaky’s treatment engineered for cruise ships and coastal environments. Marine Shield extends the fixture’s resilience to the marine world, providing targeted protection against salt air and corrosion, so its full spectrum of vivid, saturated colors performs flawlessly on board, with no compromise in output or reliability over time. Whether illuminating cruise ship stages, outdoor decks, or seaside venues, Xtylos Aqua is a natural fit for marine installations.

Equipped with two gobo wheels (one rotating with seven gobos, one static with twelve), a prism wheel with three prisms, and a sixteen-facet prism on a dedicated channel, Xtylos Aqua gives designers a wide range of creative tools. Its beam aperture spans an extremely narrow 1° to 7°, reducible to 0.5° with beam reducers — perfect for razor-sharp aerial effects that captivate audiences indoors and out, from theater and television to touring, global sporting events, and beyond.

Light Source

Tailor-made RGB laser engine

Light Output

Total lumen output: 2900 lm

Zoom range

1°-7° range (up to 0.5° using beam diameter reducers)

Effects

RGB laser based system; Linear virtual CTO 2500K – 6500K; 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos; 1 Static gobo wheel with 12 gobo slots (incl. 7 beam reducers); Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost; 16 Facets prism; Motorized Focus; 0-100% digital dimmer, 24 bit; Electronic Shutter and Strobe

Specifications

Light Source Type

Source type

tailor-made laser engine, enclosed in a sealed module

Power

250W

Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots

Long lasting light source (20000 hours) with minimal decay*
*It may vary depending on various factors, as type of use and environment

Photometric Data

Aperture range

1°-7° range (up to 0.5° using beam diameter reducers)

Total lumen output

2900 lm

Front lens diameter

150 mm

High efficiency optical system

Noise Level

54.2 dBA

Control and Connections

Personalities

Single mode with 31 control channels

Integrated Wireless DMX system as standard (Wireless Solution)

Control protocol

DMX, Art-Net, RDM, sACN

DMX and RDM connectors

Locking 5 pin XLR IN/OUT

Ethernet port

RJ45 IN

Power connector

PowerCon True1 IN/OUT

Built In Web Server

Dynamic Effects

Colours

RGB laser based system with derating to preserve laser diodes
Linear virtual CTO 2500K – 6500K

Gobos

1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
Ext diam. 25.9mm (cut @ 25mm)
Image diam. 11mm
Thickness 0.5mm
1 Static gobo wheel with 12 gobo slots: 5 gobo and 7 beam reducers

Rotating Effects

Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost
16 Facets prism with rotation in both direction at variable speed

Movement

Tilt: 248° – 16bit
Pan: 540° – 16bit
Accuracy: Resolution ± 0.63° (Range 1.26°)
Automatic repositioning
Fast/Normal speed selectable by Function channel
Mechanical Pan/Tilt lock for safe transportation and maintenancee

Beam

1° aperture – beam mode
Motorized Focus – 16bit

Dimmer/Shutter

Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit
High speed electronic Shutter and Strobe

Hardware and Software

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

Housing

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP66 protection rate
Marine Grade protection

Working Position

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max power consumption

400VA

Mains Out

Max 1600VA

Thermal Specification

Max ambient temperature

40°C (104°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

60°C (140°F)

Total heat dissipation

1366 BTU/hr ±10% / 1440 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

10 meters (32’ 10”)

Minimum distance from flammable materials

0.2 meters (8”)

Thermally protected power supply (overheating and cooling failure)

Forced ventilation with axial fans and heat sink

Fuse

T6A – 250V

Compliance

In conformity with the European Directives
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU – Electromagnetic Compatibility (EMC)
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
cMETus Listed

Packaging

Carton box + polystyrene

Carton box + Foam shell

Flight case + Foam shell (2 positions)

Weight - Size

Weight

30.4 Kg (67.2 lbs)

Base dimension

390x294mm

Vertical head height (h)

608mm

Distance between two fixtures

400mm

Accessories

Omega clamps

2×183102/805 (included)

ETL Mains cable, 1.5mt. (Bare Ends / IP65 PowerConTrue1 connector)

CAB0NL/802 (included)

Flight case + Foam shell

CF1011F (optional)

CRMX antenna extension

ANT004 (optional)

Safety Chain

105041/001 (optional)

Clamp

C21070 (Optional)
