Arolla Aqua LT

Shield Family (IP66)

Part number

CL3037

Datasheet

Arolla Aqua LT

Shield Family (IP66)

Part number

CL3037

Availability

QTY

Datasheet

View wishlist

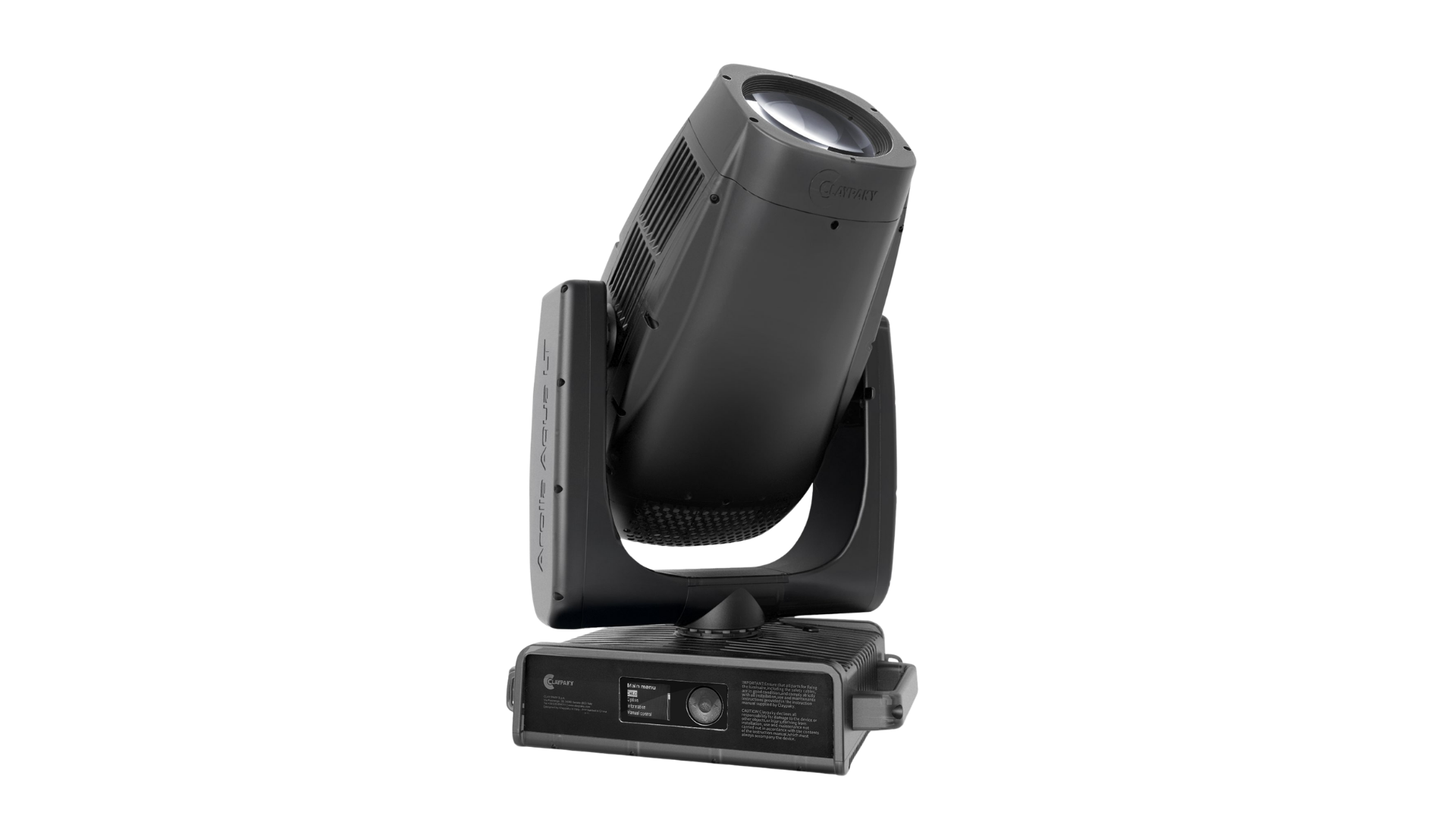

After the worldwide success of Arolla Aqua, we are proud to present Arolla Aqua LT, the family’s second ultra-equipped luminaire specially designed for larger spaces. Imagine a 900W white LED moving head that delivers exceptional brightness, great color accuracy, precise narrow long-throw beam, and advanced creative control – all in one rugged, IP66 weatherproof design, even on the open sea. Designed for intensive outdoor use in long-distance applications requiring high precision, Arolla Aqua LT is the ultimate solution for lighting professionals who demand versatility, reliability, and creativity.
Built to cut through the haze and illuminate the night sky, Arolla Aqua LT guarantees impactful aerial effects and long-throw projections to captivate your audience.

Here’s what makes Arolla Aqua LT a must-have:

IP66 rating – Shield Family: built to last, its weatherproof design reduces maintenance while guaranteeing long-term reliability. Perfect for indoor and outdoor settings, Arolla Aqua LT performs flawlessly, no matter the conditions.

Compact Design: Arolla Aqua LT offers lighting designers a powerful yet lightweight solution, providing precise control and endless creative possibilities.

Performance-to-cost Ratio: Its exceptional cost-to-performance ratio sets a new standard for efficiency, allowing designers to achieve their artistic vision without compromising quality.

A Toolbox for your Creativity: Arolla Aqua LT features a versatile effects section with two gobo wheels, a four-sided prism, and a 16-blade motorized iris for stunning creative possibilities. It also includes a soft-edge frost filter, a flood frost effect, and a precise digital dimmer, giving you full control to craft the perfect mood.

Flawless Precision, Stunning Impact: Arolla Aqua LT delivers sharp beams, crisp projections, and a versatile zoom range, transitioning effortlessly from tight beams (4°) to wide washes (52°). Perfect for dramatic effects or long throws, it cuts through haze to captivate any audience.

Absolute Position Innovation: This special system remembers the fixture’s position in real-time, even after power interruptions, ensuring precise repositioning and reducing setup time.

Sun Safe Protection System: Protect your Arolla Aqua LT from sunlight damage with this innovative feature that automatically positions the fixture away from direct sunlight, even without a signal, preventing heat buildup that could harm internal components. Simple, effective, and designed to keep your gear performing flawlessly.

Electronic Brake: No more unwanted tilts! This system keeps the head locked securely in place, ensuring smooth, precise positioning—even in the most demanding setups.

Arolla Aqua LT FS (code CL3041) is an external digital camera version, ready for follow spot applications allowing operators to control the fixture remotely while viewing a live feed from the onboard camera (digital camera is not included). This version seamlessly integrates with multiple remote tracking systems.

When reliability, innovation, and power gather, you get a moving head that turns lighting into unforgettable experiences. Elevate your designs with Arolla Aqua LT – the ideal blend of long-throw power and pinpoint precision.

Light Source

custom 900W white LED engine (6500 K)

Light Output

44,000 lm (in integrating sphere)

Zoom range

4°-52° linear zoom

Effects

Linear CMY color mixing; Linear CTO filter 3400K-6500K; Fixed color wheel with 6 dichroic colors (including high CRI 88+ filter); 1 static gobo wheel with 8 fixed gobos; 1 rotating gobo wheel with 7 HD indexable and interchangeable gobos; Animation disc with continuous rotation in both directions at variable speed; Four-sided rotating prism; Motorized iris with variable pulse and random effects; Framing system: four focal planes, +/- 60° rotation of the full system; “Total Curtain” effect allowing full blackout with each single blade; Built-in macros; Linear heavy frost 5° for wash effect, and light frost 1° for soft diffusion

Specifications

Light Source Type

Source type

White LED

Power

900W

CRI

Up to 70 with selectable filter for cri 88+

Color temperature

6500K

LED life expectancy

40.000 Hrs L70*

*It may vary depending on various factors, as type of use and environment

Photometric Data

Zoom range

4° to 52°

Lumen output

44.000 lm (integrating sphere)

Front lens diameter

Ø 170 mm

Optical system

High efficiency

Noise Level

Fixed preset

Silent mode: 37.5 dB
Auto mode: 46.3 dB
Theatre mode: 37.4 dB
Constant mode: 47.1 dB

Control and Connections

Personalities

2 modes with 38 / 41 control channels

Control protocol

DMX, Art-Net, sACN, CRMX (Lumen Radio)

Connectors

Locking five-pin XLR IN/OUT, RJ45 IN/OUT

In addition with FS version

USB 12V + RJ45 for camera version

Power connector

PowerCon True1 IN/OUT

Web Server

Built In

CloudIO

fully compatible

Dynamic Effects

Colors

linear CMY colour mixing
linear CTO filter from 3400K to 6500K
Color wheel with 6 dichroic colors

Gobos

1 rotating gobo wheel with 7 interchangeable glass gobos
1 static gobo wheel with 8 gobos

Framing System

4 blades with ± 60° rotation of the full system
“Total Curtain” effect allowing full blackout with each single blade

Frost

2 linear heavy frosts 5° and 1°

Rotating Effects

1 aluminum animation wheel with continuous rotation in both direction at variable speed
1 four-facet prism with rotation in both directions at variable speed

Iris

Motorized with variable pulse and random effects

Movement

tilt: 270° – 16bit
pan: 540° – 16bit
absolute positioning, Mechanical pan/tilt lock for safe transportation and maintenance

Dimmer/Shutter

high resolution dimmer; shutter and strobe effect

Hardware and Software

Long life self-charging battery
Display graphic LCD blacklit B/W display;
Firmware upload from another fixture,
Firmware upgrade via Web Server;
Diagnostic;
DMX monitoring;
Remote access through RDM

Housing

Magnesium and steel structure with plastic covers
Two-side handles for transportation
IP66 protection rate
Working in any position
Hanging system with fast-lock Omega clamps (1/4) on the base
Optional safety chain

Special feature

Sun safe protection

Electrical

Operating Voltage

100-240V, 50/60 Hz

Power Supply

Electronic auto range with active PFC

Max Power consumption

1400W

Thermal Specification

Max ambient temperature

45°C (113°F)

Min ambient temperature

-20°C (-4°F)

Max temperature of the external surface

90°C (194°F)

Total heat dissipation

3074 BTU/hr ±10% / 3240 kJ/hr ±10%

Saftey Specs

Minimum distance of illuminated objects

0.2 m (8 In)

Minimum distance from flammable materials

0.2 meters (8”)

Protections

External Mains Fuse T 16A 250V – 5x20mm
External Fuse (to disconnect battery during flights transportation) T 6,3A 250V – 5x20mm
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

Compliance

CE Marking (in conformity to the following)

2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
2014/30/EU Electromagnetic compatibility of equipment (EMC)
2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
2009/125/EC EcoDesign requirements for Energy related Products (ErP)

UKCA conforms to UK regulations

S.I. 2017 N. 1206
S.I. 2012 N. 3032
S.I. 2021 N. 745

cMETus Listed

UL 1573:2003
CSA C22.2 N. 166: 2015

Packaging

Carton box + Polystyrene

Carton box + Foam shell

Flight case + Foam shell (1 position)

Weight - Size

Weight

40.7 Kg (89.7 lbs)

Base dimension

450 x 320 mm
17.7 x 12.6 In

Height with vertical head (h)

765 mm
30.1 In

Distance between 2 fixtures

650 mm
25.6 In

Accessories

Omega bracket

183102/805 (included)

ETL Power Cord

CAB02B/802 (included)*

* Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)

Pinkish CMY module

CA30710000102 (Optional)

Foam shell

F21322/001 (optional)

Flight case 2 position

CF1044F (optional)

Safety Chain

105041/003 (optional)

Clamp

C21070 (Optional)
